fluxer.eddycov package

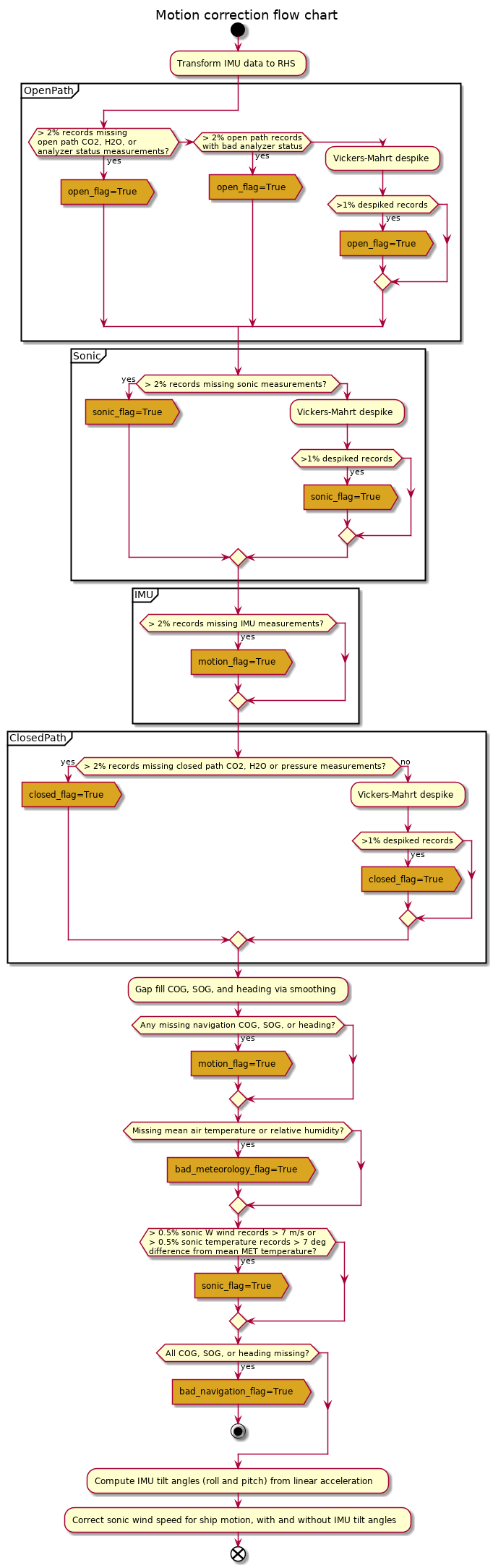

Processing flow chart

The first step is to correct data for ship motion effects:

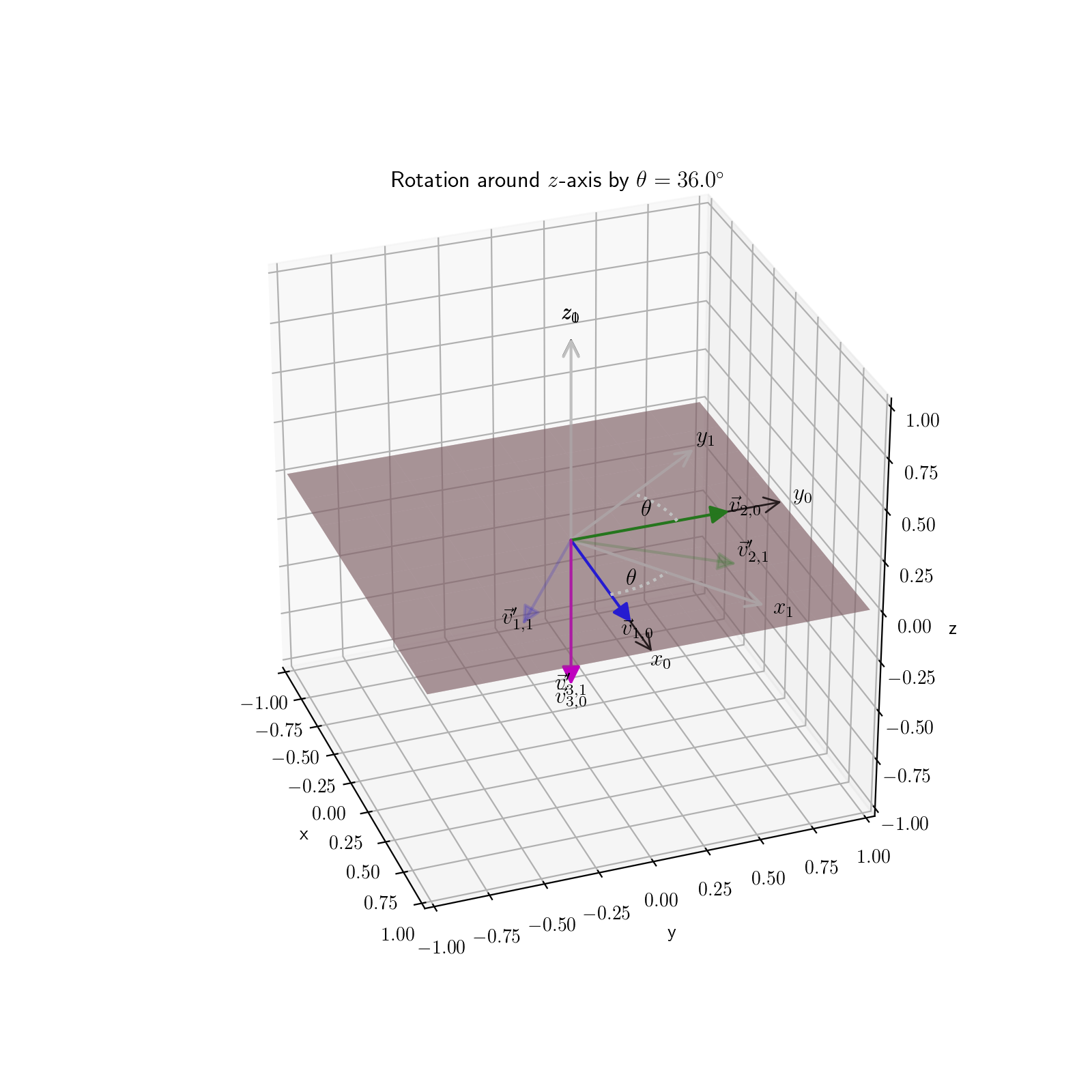

Vector rotation conventions

The coordinates of a vector \(i\) in coordinate system \(k\), i.e. \(\vec{v}_{i,k}\), can be expressed in or transformed to a different coordinate system by multiplication with a rotation matrix \(R_n\) around axis \(n\). In a right-handed coordinate system, positive rotation of the coordinate system around a coordinate axis is clockwise when looking along rotation axis from the origin towards the positive direction. A single rotation around the \(x\), \(y\), or \(z\) axis is performed by pre-multiplying the corresponding rotation matrix:

(1)\[\begin{split}\begin{align*} R_{x,\theta} &= \begin{bmatrix} 1 & 0 & 0 \\ 0 & \cos \theta & \sin \theta \\ 0 & -\sin \theta & \cos \theta \end{bmatrix} & R_{y,\theta} &= \begin{bmatrix} \cos \theta & 0 & -\sin \theta \\ 0 & 1 & 0 \\ \sin \theta & 0 & \cos \theta \end{bmatrix} & R_{z,\theta} &= \begin{bmatrix} \cos \theta & \sin \theta & 0 \\ -\sin \theta & \cos \theta & 0 \\ 0 & 0 & 1 \end{bmatrix} \end{align*}\end{split}\]

by column vector \(\vec{v}_{i,k}\). For instance, rotating vector \(\vec{v}_{i,k}\)‘s coordinates from coordinate system \(0\) to coordinate system \(1\) around the vertical \(z\) axis is defined as:

\[\begin{equation} \vec{v}_{i,1} = R_{z,\theta} \vec{v}_{i,0} \end{equation}\]

This particular definition is known as “passive” or “alias” rotation. Alternatively, the same rotation can be achieved by post-multiplying the row vector \(\vec{v}_{i,k}\) by the inverse (or transpose, in orthogonal matrices such as these) of the rotation matrix in equation (1):

(2)\[\begin{equation} \vec{v}_{i,1} = \vec{v}_{i,0} R_{z,\theta}^\intercal \end{equation}\]

Using \(R_{z,\theta}\) instead of the inverted (transposed) matrix results in what is known as an “active” or “alibi” rotation of the vector in the opposite direction (i.e. counterclockwise using the convention described above) in the same fixed coordinate system. Equation (2) is computationally more convenient, as vector data are typically acquired and stored in rows, so this is the convention adopted in eddycov. Figure 1 illustrates this operation for a commonly used rotation to eliminate the angular offset of an anemometer relative to the main longitudinal axis of the platform where it was mounted.

(Source code, png, hires.png, pdf)

Module contents

Tools for eddy covariance analysis requiring motion correction

main	Perform flux analyses, given a configuration file
smooth_angle	Smooth angles by decomposing them, applying a boxcar average
planarfit	Calculate planar fit coefficients for coordinate rotation
rotate_coordinates	Rotate vector coordinate system or vectors themselves around an axis
rotate_wind3d	Transform 3D wind vectors to reference mean streamline coordinate system
wind3D_correct	Correct wind vector measurements from a moving platform
despike_VickersMahrt	Vickers and Mahrt (1997) signal despiking procedure
wind3D_correct_period	Perform wind motion correction on period dataframe

fluxer.eddycov.main(config_file)

Perform flux analyses, given a configuration file

Parameters:config_file (str) – Path to configuration file. Returns:Writes summary file and prints messages from process. Return type:None

fluxer.eddycov.wind3D_correct_period(ec_prep, config, **kwargs)

Perform wind motion correction on period dataframe

Parameters:

• ec_prep (pandas.DataFrame) – Pandas DataFrame with prepared flux data.
• config (OrderedDict) – Dictionary with parsed configuration file.
• tilt_motion (numpy.array, optional keyword) – Passed to wind3D_correct.
• tilt_anemometer (numpy.array, optional keyword) – Passed to wind3D_correct.

Returns:

wind corrected flux data.

Return type:

pandas.DataFrame

fluxer.eddycov.smooth_angle(angle, vmagnitude=1, kernel_width=21)

Smooth angles by decomposing them, applying a boxcar average

Smoothing is done by using a 1D kernel smoothing filter of a given width.

Parameters:

• angle (numpy.ndarray) – The angle(s) in degree units.
• vmagnitude (numpy.ndarray, optional) – The magnitude array associated with each angle. It can be a scalar that is common to all angle elements.
• kernel_width (int, optional) – The width of the filter kernel.

Returns:

namedtuple with ndarrays angle and magnitude, in that order.

Return type:

namedtuple

fluxer.eddycov.planarfit(vectors)

Calculate planar fit coefficients for coordinate rotation

See Handbook of Micrometeorology (Lee et al. 2004). Ported from getPlanarFitCoeffs.m from Patric Sturm <pasturm@ethz.ch>.

Parameters:vectors (numpy.ndarray) – A 2-D (Nx3) array with x, y, and z vectors, expressed in a right-handed coordinate system. These vectors may correspond to u, v, and w wind speed vectors, or inertial acceleration components. Returns:PlanarFitCoefs – namedtuple with (index and name in brackets):

numpy.ndarray [0, k_vct]

1-D array (1x3) unit vector parallel to the new z-axis.

numpy.ndarray [1, tilt_coefs]

1-D array (1x3) Tilt coefficients b0, b1, b2.

numpy.float [2, phi]

Scalar representing roll angle \(\phi\).

numpy.float [3, theta]

Scalar representing pitch angle \(\theta\).

Return type:namedtuple

fluxer.eddycov.rotate_coordinates(vectors, theta, axis=2, **kwargs)

Rotate vector coordinate system or vectors themselves around an axis

A right-handed coordinate system is assumed, where positive rotations are clockwise when looking along the rotation axis from the origin towards the positive direction. With the default active=False, each row vector \(i\) in input coordinate system \(0\) is rotated around the given axis by angle \(\theta\), so that it can be expressed in coordinate system \(1\) as follows:

\[\vec{v}_{i,1} = \vec{v}_{i,0} R_{\theta}\]

where the input and output coordinate systems are different. If the input and output coordinate systems are the same, i.e. active=True, the vectors are transformed according to:

\[\vec{v}_{i,1} = \vec{v}_{i,0} R_{\theta}^\intercal\]

Parameters:

• vectors (array_like) – An nx3 array of vectors with their x, y, z components
• theta (numeric) – The angle (degrees) by which to perform the rotation.
• axis (int) – Axis around which to perform the rotation (x = 0; y = 1; z = 2).
• **kwargs –

  Optional keywords

  active : bool

  Whether to return the coordinates of each vector in the rotated coordinate system or to rotate the vectors themselves onto the same coordinate system. Default is to perform a passive transformation, i.e. rotation of the coordinate system.

Returns:

The vector array with the same shape as input with rotated components.

Return type:

array_like

fluxer.eddycov.rotate_wind3d(wind3D, method='PF', **kwargs)

Transform 3D wind vectors to reference mean streamline coordinate system

Use double rotation, triple rotation, or planar fit methods (Wilczak et al. 2001; Handbook of Micrometeorology).

This is a general coordinate rotation tool, so can handle inputs such as wind speed and acceleration from inertial measurement units.

Parameters:

• wind3D (numpy.ndarray) – A 2-D (Nx3) array with x, y, and z vector components, expressed in a right-handed coordinate system. These may represent u, v, and w wind speed vectors, or inertial acceleration.
• method ({"DR", "TR", "PF"}, optional) – One of: “DR”, “TR”, “PF” for double rotation, triple rotation, or planar fit.
• k_vector (numpy.ndarray, optional) – 1-D array (1x3) unit vector parallel to the new z-axis, when “method” is “PF” (planar fit). If not supplied, then it is calculated.

Returns:

RotatedVectors – namedtuple with (index, name in brackets):

numpy.ndarray [0, rotated]

2-D array (Nx3) Array with rotated vectors

numpy.ndarray [1, phi_theta]

1-D array (1x2) \(\phi\) and \(\theta\) rotation angles. The former is the estimated angle between the vertical unit coordinate vector in the rotated frame and the vertical unit vector in the measured uv plane, while the latter is wind direction in the measured uv plane. Note these are not roll and pitch angles of the measurement coordinate frame relative to the reference frame.

Return type:

namedtuple

fluxer.eddycov.wind3D_correct(wind_speed, acceleration, angle_rate, heading, speed, anemometer_pos, sample_freq, Tcf, Ta, tilt_motion=array([0., 0.]), tilt_anemometer=array([0., 0.]))

Correct wind vector measurements from a moving platform

This is a port of S. Miller’s motion Matlab function, which implements Miller et al. (2008) approach. Coordinate frame is assumed to be right-handed:

• x - positive towards the bow.
• y - positive towards port side.
• z - positive upwards.

Parameters:

• wind_speed (numpy.ndarray) – A 2-D (Nx3) array with u, v, and w wind speed (m/s) vectors.
• acceleration (numpy.ndarray) – A 2-D (Nx3) array with x, y, and z acceleration (m/s/s) vectors.
• angle_rate (numpy.ndarray) – A 2-D (Nx3) array with angular rates (radians/s) vectors.
• heading (array_like) – A vector with ship heading measurements (deg) in right-hand coordinate system.
• speed (array_like) – A vector with ship speed (m/s).
• anemometer_pos (array_like) – [x, y, z] position vector of anemometer, relative to motion sensor (m).
• sample_freq (float) – Sampling frequency (Hz).
• Tcf (float) – Complimentary filter period (s).
• Ta (float) – High-pass filter cutoff for accelerations (s). This can be a scalar if the same cutoff is used for the three components, or a 3 element vector to indicate cutoff period for the x, y, z components.
• tilt_motion (array_like, optional) – [roll, pitch] vector with mean tilt (radians) relative to a horizontal plane. Roll angle offset is positive is port side up, and pitch is positive for bow down (see Miller 2008 for info, set to [0 0] if unknown).
• tilt_anemometer (array_like, optional) – [roll, pitch] vector with mean tilt (radians) relative to a horizontal plane. Roll angle offset is positive is port side up, and pitch is positive for bow down (see Miller 2008 for info, set to [0 0] if unknown).

Returns:

CorrectedWind3D – namedtuple with (index, name in brackets):

numpy.ndarray [0, uvw_ship]

2-D array (Nx3) with corrected wind vectors in ship-referenced frame with z-axis parallel to gravity.

numpy.ndarray [1, euler_angles]

2-D array (Nx3) with Euler angles.

numpy.ndarray [2, euler_angles_angular_rates]

2-D array (NX3) with Euler angles from rate sensors (unfiltered).

numpy.ndarray [3, euler_angles_accelerations]

2-D array (NX3) with Euler angles from accelerometers (unfiltered).

numpy.ndarray [4, euler_angles_slow]

2-D array (NX3) with slow Euler angles (low pass filtered).

numpy.ndarray [5, euler_angles_fast]

2-D array (NX3) with fast Euler angles (high pass filtered).

numpy.ndarray [6, mount_offset_rotations]

2-D array (3X3) with mounting offset rotation matrix (see Miller 2008).

numpy.ndarray [7, uvw_earth]

2-D array (NX3) with measured velocity, rotated to the earth frame.

numpy.ndarray [8, uvw_angular]

2-D array (NX3) with velocity induced by angular motion.

numpy.ndarray [9, uvw_linear]

2-D array (NX3) with velocity induced by platform linear motion.

numpy.ndarray [10, ship_enu]

2-D array (NX3) with ship velocity in eastward, northward, up frame. (low pass filtered).

numpy.ndarray [11, uvw_enu]

2-D array (NX3) with corrected wind in eastward, northward, up frame.

numpy.ndarray [12, imu_enu]

2-D (NX3) array with displacement of the motion sensor.

Return type:

namedtuple

References

Miller,S.D., Hristov,T.S., Edson,J.B., and C.A. Friehe, 2008:

Platform Motion Effects on Measurements of Turbulence and Air-Sea Exchange Over the Open Ocean, J. Atmo. Ocean. Tech. 25(9), 1683-1694, DOI: 10.1175/2008JTECHO547.1.

fluxer.eddycov.despike_VickersMahrt(x, width, zscore_thr, nreps, step=None, nrep_thr=None, interp_nan=True)

Vickers and Mahrt (1997) signal despiking procedure

The interpolating function is created by the InterpolatedUnivariateSpline function from the scipy package, and uses a single knot to approximate a simple linear interpolation, so as to keep the original signal as untouched as possible.

Parameters:

• x (numpy.ndarray) – A 1-D signal vectors to be despiked.
• width (int) – Window width.
• step (int, optional) – Step size for sliding windows. Default is one-half window width.
• zscore_thr (float) – The zscore beyond which an observation is considered to be an outlier. Default is zero.
• nrep_thr (int, optional) – The maximum number of consecutive outliers that should occur for a spike to be detected. Default: 3.
• nreps (int, optional) – How many times to run the procedure. Default is zero.
• interp.nan (bool, optional) – Whether missing values should be interpolated. Interpolated values are computed after despiking. Default is True.

Returns:

VickersMahrt – Tuple with (index, name in brackets):

numpy.ndarray [0, x]

1-D array with despiked input.

numpy.int [1, nspikes]

Number of spikes detected.

numpy.int [2, ntrends]

Number of outlier trends detected.

numpy.int [3, kclass]

Number of iterations performed.

Return type:

tuple

Submodules

parse_ecfile

Parse and flag input eddy covariance file

exception fluxer.eddycov.parse_ecfile.FluxError

Bases: exceptions.Exception

Base class for Exceptions in this module

exception fluxer.eddycov.parse_ecfile.SonicError(message, flags)

Bases: fluxer.eddycov.parse_ecfile.FluxError

Critical sonic anemometer Exception

exception fluxer.eddycov.parse_ecfile.NavigationError(message, flags)

Bases: fluxer.eddycov.parse_ecfile.FluxError

Critical navigation Exception

exception fluxer.eddycov.parse_ecfile.MeteorologyError(message, flags)

Bases: fluxer.eddycov.parse_ecfile.FluxError

Critical meteorology Exception

fluxer.eddycov.parse_ecfile.prepare_period(period_file, config)

Parse input period file and set up data for flux analyses

Parameters:

• period_file (str) – Path to file with pre-filtered, candidate, flux data.
• config (OrderedDict) – Dictionary with parsed configuration file.

Returns:

Tuple of two pandas.DataFrame objects; first represents prepared flux data, and the second the flags encountered during tests. The latter is also passed along with exception, if raised.

Return type:

tuple

settings

Basic flags and objects required throughout the package

fluxer.eddycov.settings.FLUX_FLAGS = ['failed_prep_flag', 'open_flag', 'closed_flag', 'sonic_flag', 'motion_flag', 'bad_navigation_flag', 'bad_meteorology_flag']

Flags used during processing

tilt_windows

Calculate tilt angles in flux files using non-overlapping moving windows

class fluxer.eddycov.tilt_windows.TiltWindows(ec_files=[], win_minutes=0)

Well-defined pandas DataFrame

get_tilts_planarfit(config)

Compute tilt angles in all windows using planar fit method

Parameters:config (OrderedDict) – Dictionary with parsed configuration file. Returns:tilt angles for each window. Return type:pandas.DataFrame

plot(fig_file, step=1, title=None)

Generate a plot of tilt angles and diagnostics

Parameters:

• fig_file (str) – Path to file to write plot to
• step (int, optional) – Step (stride) to subsample the time series by. Default is 1.
• title (str) – Title for plot. Default is None.
